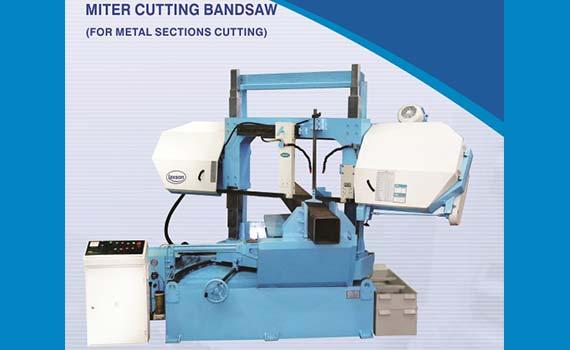

LK-601 DCM
- Saw head movement on heavy duty LM Guide
- The Swivel is directly above the intersection of the saw blade and the fix vice jaw so that there is a Datum measuring point which does no change with the miter angle
- Swiveling cutting head and stationary work table with easy cutting angle setting
- Suitable to cut angles in range of 90 degree to 45 degree
- Accurate angular movement.(least count-0.1 degree)
- Steeples cutting pressure regulation through weight of the heavy and rigid saw frame and the fine tuning pending on cross – section by hydraulic damping cylinder
- Rapid lowering of the saw frame via button until material edge
- Free-standing control panel
- Precise saw blade carbide roller guidance
- Integrated chip collection tray
Description
| Cutting Capacity | – |
| Round (mm) | 610 x 610 |
| Square (mm) | 700 x 610 |
| Blade Dimensions(mm) | 7860 x 54 x 1.6 |
| Blade Linear Speed(mm) | 20 / 30 / 40 / 50 / 75 |
| Power Req. – Saw Drive (440V AC, 50Hz) | 5.5 / 7.5 / 100 RPM, 1.1 / 1.5 / 1440 RPM |
| Coolant Pump | 0.12 / 0.15 / 2800 RPM |
| Wire Brush Motor | 0.18 / 0.25 / 1440 RPM |
| Hydraulic Tank Capacity | 80 |
| Coolant Tank Capacity | 80 |
| Dimensions (LxWxH) mtr. | 3.5 x 1.7 x 2.2 |
| Weight (kg) | 4500 |
