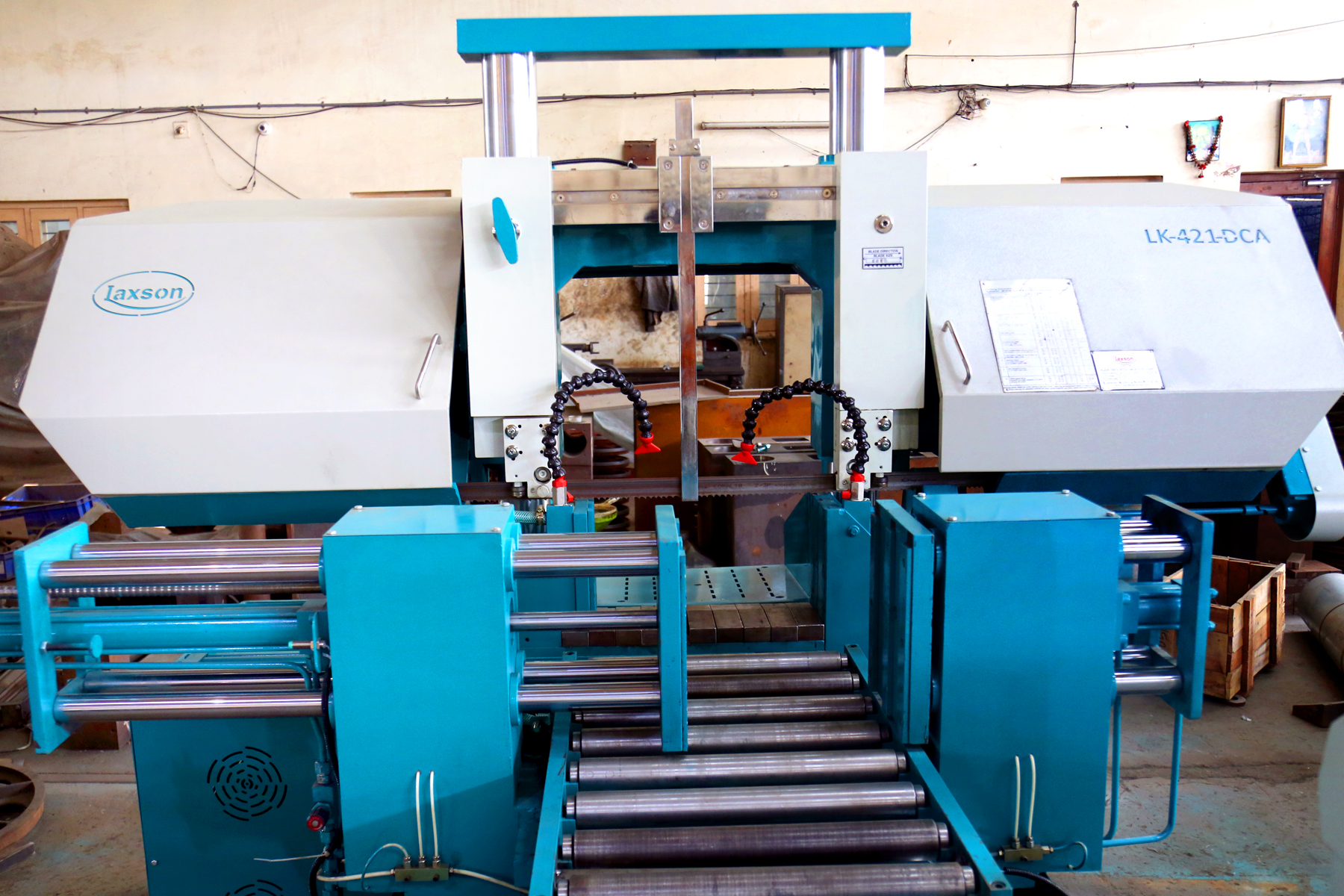

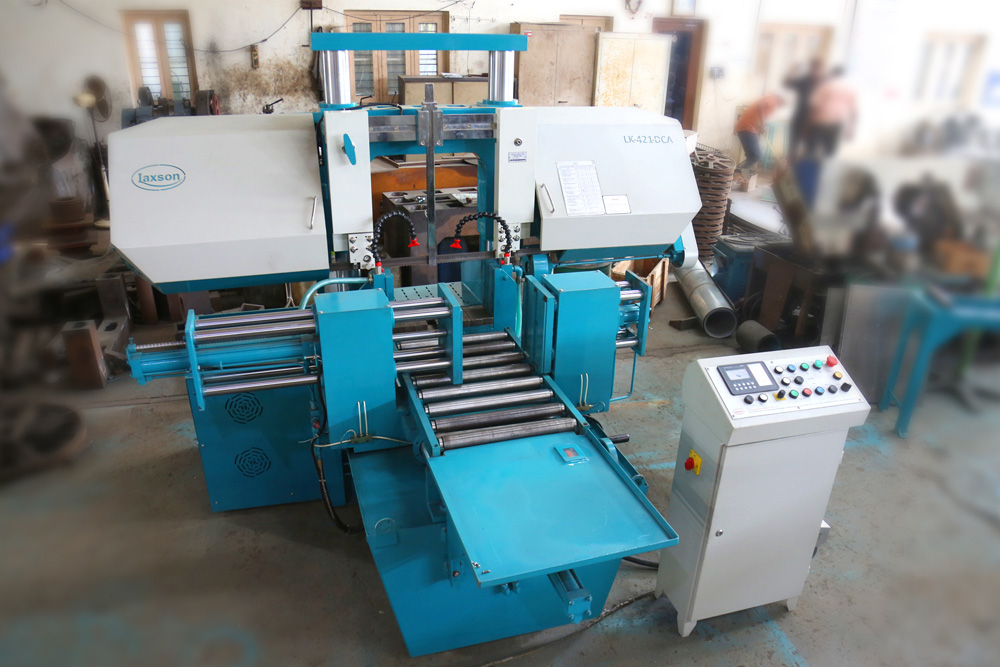

LK-421 DCA
- PLC control for all electric and hydraulic functions
- Shuttle Type Automatic Job Length Feeding

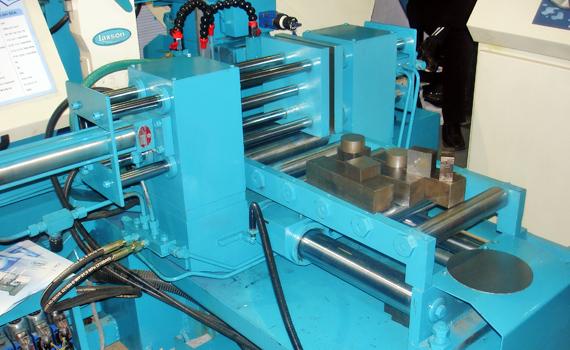

- Floating shuttle vise for handling of bent job
- Automatic work height control and fast approach

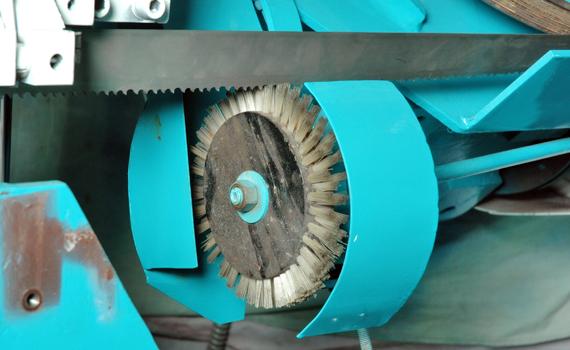

- Power driven Chip removal Wire brush assembly
- Hydraulic Blade Tension
- Split main vise for better gripping
- Idler Wheel Motion Detector with Blade Stalling and Breakage shut off
- Roller Bearing / Carbide wear pad Blade guide system
- Bi Metal Bandsaw Blade
Description
Cutting Capacity | 421 |
Round (mm) | 421 |
Square (mm) | 421 |
Blade Dimensions(mm) | 5450 x 41 x 1.3 |
Blade Linear Speed(Meter/Min.) | 20 -80 RPM |
Power Req. – Saw Drive (440V AC, 50Hz) Kw/Hp | 3.7 / 5.0 / 1440 RPM |
Coolant Pump (440V AC, 50Hz) Kw/Hp | 0.12 / 0.16 / 2800 RPM |
Wire Brush Motor (440V AC, 50Hz) Kw/Hp | 0.18 / 0.25 / 1440 RPM |
Hydraulic Tank Capacity (Liter) | 80 liter |
Coolant Tank Capacity (Liter) | 80 liter |
Shuttle Bar Feed Stroke (mm) | 350 |
Bundle Cutting W x H mm (*optional) | 421 x 150 |
Dimensions (LxWxH) mtr. | 2.5 x 3.5 x 1.7 |
Weight (kg) | 2500 |
OPTIONAL ACCESSORIES
- A.C. Drive for Infinitely variable speed control
- Bundle cutting attachment
- Chip Conveyor
- Job Roller Stand
- Wire Brush
- Bi-metal Bandsaw blade
- Variable Vise pressure for thin walled job
