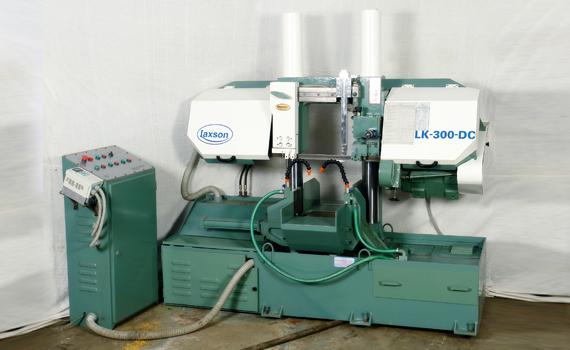

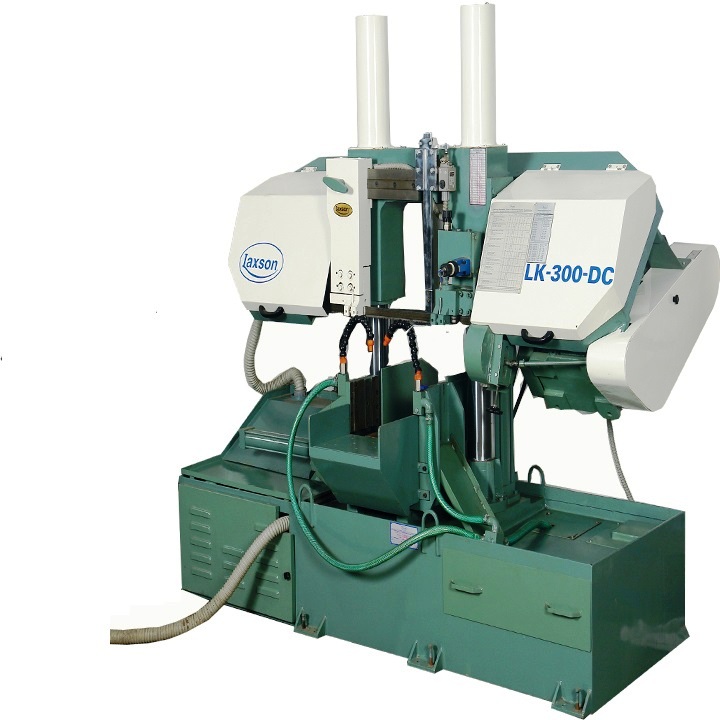

LK-301 DC
- Roller Bearing / Carbide wear pad Blade guide system
- Automatic work height control and fast approach
- Power driven Chip removal Wire Brush
- Hydraulic Blade tension
- Split main vise for better gripping
- Idler Wheel Motion Detector with Blade Stalling and Breakage shut off
- M-42 Bi Metal Bandsaw Blade
Description
| Cutting Capacity | 310 |
| Round (mm) | 310 |
| Square (mm) | 310 |
| Blade Dimensions(mm) | 4100 x 34 x 1.1 |
| Blade Linear Speed (meter/min) | 20 -100 RPM |
| Power Req. – Saw Drive (440V AC, 50Hz) kw/Hp | 2.2 / 3.0 / 1440 RPM |
| Coolant Pump (440V AC, 50Hz) Kw/Hp | 0.12 / 0.16 / 2800 RPM |
| Wire Brush Motor (440V AC, 50Hz) Kw/Hp | 0.18 / 0.25 / 1440 RPM |
| Hydraulic Tank Capacity (Liter) | 30-40 liter |
| Coolant Tank Capacity (Liter) | 80 liter |
| Dimensions (LxWxH) mtr. | 2.3 x 1 x 1.3 |
| Weight (kg) | 1500 |
OPTIONAL ACCESSORIES
- A.C. Drive for Infinitely variable speed control
- Bundle cutting attachment
- Chip Conveyor
- Job Roller Stand
- Wire Brush
- Bi-metal Bandsaw blade
- Job Feeder Unit (Mechnical Type)
- Variable Vise pressure for thin walled job
