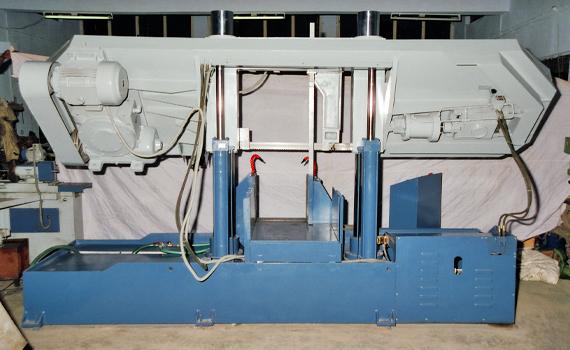

LK-1500 DC
- Roller Bearing / Carbide wear pad Blade guide system
- Automatic work height control and fast approach
- Power driven Chip removal Wire Brush
- Hydraulic Blade tension
- Split main vise for better gripping
- Idler Wheel Motion Detector with Blade Stalling and Breakage shut off
- M-42 Bi Metal Bandsaw Blade
Description
| Cutting Capacity | – |
| Round (mm) | 1100 x 1500 |
| Square (mm) | 1100 x 1500 |
| Blade Dimensions(mm) | 13200 x 80 x 1.6 |
| Blade Linear Speed(mm) | 20 / 30 / 40 / 50 / 75 |
| Power Req. – Saw Drive (440V AC, 50Hz) | 9.3 / 12.5 / 1440 RPM 1.1 / 1.5 / 1440 RPM |
| Coolant Pump | 0.18 / 0.25 / 2800 RPM |
| Wire Brush Motor | 0.18 / 0.25 / 1400 RPM |
| Hydraulic Tank Capacity | 100 |
| Coolant Tank Capacity | 100 |
| Dimensions (LxWxH) mtr. | 6.0 x 2 x 4.0 |
| Weight (kg) | 15000 |
OPTIONAL ACCESSORIES
- A.C. Drive for Infinitely variable speed control
- Bundle cutting attachment
- Chip Conveyor
- Job Roller Stand
- Wire Brush
- Bi-metal Bandsaw blade
- Job Feeder Unit (Mechnical Type)
- Variable Vise pressure for thin walled job
- Job Feeder Unit (Hydraulic Type)
