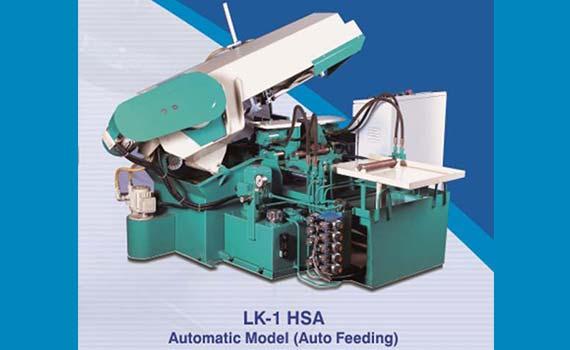

LK-1 HSA (Auto Feeding)
- Complete with Electricla ie., Saw drive Elecrical Motor, Coolant Pump
- On – Off Contactor with Push Button
- V-belt Pulley with V-belt
- Job Stopper
- Oil Field Gear box Delete and Hydraulic Cylinder
- Friction Type Chip Removal Wire Brush
- Roller Bearing / Carbide Wear Pad Blade Guide System
- Automatic Work Height Control and Fast Approach (For LK 1 HSA Model)
- Shuttle Type Automatic Job Length Feeding(For LK 1 HSA Model)
- PLC Control for all Electrical and Hydraulic Function (For LK 1 HSA Model)
Description
| Cutting Capacity | – |
| Round (mm) | 205 |
| Square (mm) | 175 x 175 |
| Blade Dimensions(mm) | 3000 x 27 x 0.9 |
| Blade Linear Speed(mm) | 20 – 35 – 55 – 75 |
| Power Req. – Saw Drive (440V AC, 50Hz) | 0.75 / 1.0 |
| Coolant Pump | 0.12 / 0.15 |
| Wire Brush Motor | 0.18 / 0.25 / 1440 RPM |
| Dimensions (LxWxH) mtr. | 1.7 x 1.5 x 0.9 |
| Weight (kg) | 450 |
OPTIONAL ACCESSORIES
- Chip Removal Wire Brush
- Carbon Steel Bandsaw Blades
- Bi-metal Bandsaw Blades
- Mechanical Job Feeder Unit
- Swivel Vice Assembly for Angular Cutting
- Electro-mechanical Type Auto Saw Arm Lifter
- Electro-mechanical Type Auto Saw Arm Lifter and Cutting Feed Regulator
- Job Roller Stand
